This is very useful screen , it show you some statistics for last 24 hours like ( ACD , ASR , Connected calls count , and failed calls count) , also the calls traffic will appear in "call live monitoring" section , in this section the system will show the last 100 calls with their details , also during running this page , all incoming calls will appear directly "in real time" , the calls are sorted descending based on call date and time , the new calls will be appear at the top

You can click on any call to see call details , call flow , and errors if any

Each node color mean something :

• The call is trying to connect
• The call is not answered
• The call is answered , and still connected
• The call is answered , and ended
• The call is rejected for some reason , you can click/expand call node to see the details

To allow your clients to send calls traffic to your SIP-Electron server , you have to create record on the system for each one of them , clients are two types , [1] Retail Client - SIP Account , [2] Wholesale Client - IP Based , in this section we are talking about retail clients

Retail Client - SIP Account : your client here will use SIP account info to send calls to your server , authentication here will be done using username and password

To add retail client , please follow the steps as shown in the videos below :

Step #1 Add tariff for your retail client for billing and revenue calculation purposes [Mandatory Step]

Step #2 Add your retail client information [Mandatory Step] , the fields are explained below

Client Name : your retail client name , nickname , or any name , this field will not be used in authentication process

SIP Username : username for your retail client , this field will be used in authentication process

SIP Password : password for your retail client , this field will be used in authentication process

Calls Limit : default 0 unlimited , or change it to any other number as needed

Tariff : choose the created tariff in step #1 , for billing and revenue calculation purposes

Filter Traffic Rule : you can create filter rule to filter your client calls based on dialed number , caller id , or based on other factors

Active : this field is to activate or deactivate your client , if you deactivate your client , he will not be able to send calls

Remaining Balance : credit limit that you want to allow your client to use it

Codecs : you can enable disable codecs as needed

Calculate Costs : If you want to send your calls traffic to your service provider through SIP account you can activate this option to calculate your provider costs and your net profit

Remove Prefix : Remove part from dialed number prefix before the call go to dialing plan

Add Prefix : Add part to dialed number prefix before the call go to dialing plan

Billing Email : If you enable invoicing module , you must fill in this field so the invoice will be sent to your client automatically on a weekly basis when it is issued

Set Caller Id Range : If you want to replace caller id field in client calls traffic you can enable this option and set the desire caller id range that accepted by your provider

Enable Web Login : You can enable this option to allow your client to login to SIP-Electron and see his calls

To allow your clients to send calls traffic to your SIP-Electron server , you have to create record on the system for each one of them , clients are two types , [1] Retail Client - SIP Account , [2] Wholesale Client - IP Based , in this section we are talking about wholesale clients

Wholesale Client - IP Based : your client here will send traffic from his IP - to your server IP directly , authentication here will be done using your client IP address

To add wholesale client , please follow the steps as shown in the videos below :

Step #1 Add tariff for your wholesale client for billing and revenue calculation purposes [Mandatory Step]

Step #2 Add your wholesale client information [Mandatory Step] , the fields are explained below

Client Name : your retail client name , nickname , or any name , this field will not be used in authentication process

Calls Limit : default 0 unlimited , or change it to any other number as needed

Tariff : choose the created tariff in step #1 , for billing and revenue calculation purposes

Filter Traffic Rule : you can create filter rule to filter your client calls based on dialed number , caller id , or based on other factors

Active : this field is to activate or deactivate your client , if you deactivate your client , he will not be able to send calls

Remaining Balance : credit limit that you want to allow your client to use it

IP Address : your client IP address , if your client send calls from another IP address the calls will be rejected

Codecs : you can enable disable codecs as needed

Remove Prefix : Remove part from dialed number prefix before the call go to dialing plan

Add Prefix : Add part to dialed number prefix before the call go to dialing plan

Billing Email : If you enable invoicing module , you must fill in this field so the invoice will be sent to your client automatically on a weekly basis when it is issued

Set Caller Id Range : If you want to replace caller id field in client calls traffic you can enable this option and set the desire caller id range that accepted by your provider

Enable Web Login : You can enable this option to allow your client to login to SIP-Electron and see his calls

Destination is where you want to send the calls to , destinations are two types :

1) Destination IP : SIP-Electron will send calls to static IP address

2) Retail Client - SIP Account : this way is used when the destination does not have static ip , here SIP-Electron can send calls to registered SIP account , for more information about creating retail account , you can check retail clients section.

The video below demonstrate how to create Destination IP on SIP-Electron server , the fields are explained below

Destination Name : your provider name , gateway name , or any name

IP Address : your provider or gateway IP address

Port : port number used in SIP communications , default port usually used is 5060

Calls Limit : default 0 unlimited , or change it to any other number as needed

Active : this field is to activate or deactivate your gateway or provider , if you deactivate your gateway , SIP-Electron will not send the calls to this destination

Username : the username field is optional , it's mandatory if your gateway or provider use username and password for authentication process with your IP address , usually authentication process is done only using your IP address

Password : the password field is optional , it's mandatory if your gateway or provider use username and password for authentication process with your IP address , usually authentication process is done only using your IP address

Codecs : you can enable disable codecs as needed

Calculate Costs : You can activate this option to calculate your provider costs , and your net profit

Replace Caller Id : Some providers/terminators are accepting calls from specific caller id(s) , by using this option you can replace the incoming caller id in client traffic with your desire caller id(s) list , the system will select caller id from your caller id list randomly

After you create clients , and destinations , you need to create a dialing plan , the dialing plan is needed to route incoming calls traffic from your client to specific destination by using call prefix

One dialing plan can be used by many clients , if you have multiple clients sending calls to the same prefix and destination , then one dialing plan is needed only

You can create many dialing plans for same prefix , the system will use them based on their priority , if the call rejected for any reason on the first dialing plan the system will re-route the call to next dialing plan

Example : if your clients are sending traffic with prefix 1122xxxxxx , you have to create a dialing plan to let the soft-switch to route the incoming calls that starting with prefix 1122 to the assigned destination

The video below demonstrate how to create a dialing plan on SIP-Electron server , the fields are explained below

Prefix : your client prefix that you want to link it with destination

Priority : if you want to create many dialing plans for the same prefix , you need to set priority for each dialing plan , the system will use the created dialing plans for the same prefix based on their priorities

Calls Limit : default 0 unlimited , or change it to any other number as needed

Route Type : if you want to route calls to static IP address , then choose destination IP , if your destination doesn't have static IP address then choose retail client

Destination Name : choose any destination you want , to create a destination you can check how to create destination IP section

Remove Prefix : if you want to strip prefix and pass the call to your gateway or to your provider without prefix , you can here add prefix to remove it from dialed number

Add Prefix : if you want to append prefix for dialed numbers you add it here

Http Lookup URL : you can here use external web service (API) to validate your dialed numbers before pass it to your destination , to use this feature , just add web service URL , the service should return number as plain text , then SIP-Electron will pass the returned number to your destination

Example : let suppose that you have API provider (http://api.numbers.com/) to check and validate numbers before sending them to your destination , you can put your api provider url in lookup field , the api provider will receive the dialed number and other call info in [query string] like this http://api.numbers.com?dialednumber=1122334455 , he will check the number and return the same number if the number is valid and will return any other message if the number is not valid to reject the call

Client calls traffic sometimes is not clean 100% , and sometimes the calls are not generated by human , so you need "Filter Traffic Rules" feature to filter junk/spam calls , this feature increase your destination/gateway performance and protect your gateways and SIM cards from suspicious numbers

This feature allow you to pass/reject incoming calls from client to your destination using conditions based on some factors

Examples :

- You can reject calls that repeated quickly to same dialed number

- Pass calls based on static whitelist or reject calls based on static blacklist

- Reject short duration calls

- Reject numbers that have incorrect number of digits (length)

- Caller Id conditions

The video below demonstrate how to create "Filter Traffic Rules" on SIP-Electron server , the fields are explained below

Check dialed number length : If you enable this option , the server will pass the calls if the dialed numbers length within the set range

Check caller id length : If you enable this option , the server will pass the calls if the caller id length within the set range

Accept (dialed number) specific prefixes only : you can set some prefixes to pass them , you can add many prefixes here , one prefix on each line

Block (dialed number) specific prefixes only : you can set some prefixes to reject them , you can add many prefixes here , one prefix on each line

Caller Id format : you can choose caller Id pattern/format you want to pass through your server or specify caller id prefixes to allow or block them.

Accept dialed number if it's exists on whitelist : if you enable this option , you can upload whitelist , and calls will be passed only if dialed number exists in this list

Block dialed number if it's exists on blacklist : if you enable this option , you can upload blacklist , and calls will be rejected only if dialed number exists in this list

Accept caller id if it's exists on whitelist : if you enable this option , you can upload whitelist , and calls will be passed only if caller id exists in this list

Block caller id if it's exists on blacklist : if you enable this option , you can upload blacklist , and calls will be rejected only if caller id exists in this list

Block caller id by attempts in time : This is dynamic filtering technique , you can reject calls in real time if the caller id is repeated multiple times during a certain time

Block caller id by attempts and call duration : This is a dynamic filtering technique , you can reject calls in real time if the caller id is repeated many times and the duration of the calls is less than the set value

Block dialed number by attempts in time : This is dynamic filtering technique , you can reject calls in real time if the dialed number is repeated multiple times during a certain time

Block dialed number by attempts and duration : This is a dynamic filtering technique , you can reject calls in real time if the dialed number is repeated many times and the duration of the calls is less than the set value

Go to "Connected Calls (CDR)" page , insert date and time from , date and time to , you can select specific route or all , also you can select specific client or all , then click fetch or export

Go to "Failed Calls" page , insert date and time from , date and time to , you can select specific route or all , also you can select specific client or all , then click fetch

Go to "Statistics" page , insert date and time from , date and time to , you can select specific route or all , also you can select specific client or all , then click fetch

To enable invoicing module go to invoices => settings => and change module role

If you enable our invoicing module the system will automatically issue an invoice for each client and save it on the system , you can view the issued invoices on SIP-Electron , also you can configure the module to send the invoices to your clients automatically , to activate this feature go to invoices => settings , and change module role to "Generate and send Email" , if you enable this option you have to enter your client billing Email in client information page clients => select a client => edit => fill billing email

You can upload your company logo to attach it in the invoice header

If you want to send the invoices automatically you need to fill your Email server (SMTP) information like host name , port , Email id , etc

Description for invoicing module fields and options , invoices => settings :

Module Role : choose the desired role from the drop down list

Select Clients : choose the clients you want to send invoices to them

Company Logo : upload your company logo to attach it in the invoice header

SMTP Server : your Email server host name

SMTP Port : your host port number

Email Id : your billing Email id to use it in sending the Emails to your clients

Email Password : your Email password

Enable SSL : enable it if your host support SSL

Body Html : send the Email in HTML format

Email Subject : Email subject

Email Body : your message to client , like please find attached invoice , you can use dynamic words #ClientName# , #InvoiceFrom# , #InvoiceTo# , the system will replace these reserved words with actual data before sending the Email

The system will auto block suspicious IP addresses and you can manage these ip/s as well from "Blocked/IP" page

Go to "Recorded Calls" page The system will show the last 100 recorded calls to give you the chance to listen and check your route and fix any possible route issue

Go to "Configuration" => "SIP Messages" page , you can modify SIP messages to match your needs , such as sending "486-Busy" instead of "480-Temporarily Unavailable" , .. etc

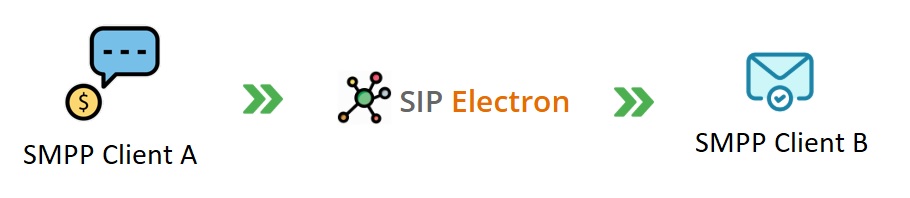

SIP Electron has the ability to route SMPP traffic , you need to create SMPP client users , one for sender and other one for receiver , both SMPP clients should be connected through system id and password , SIP Electron will route SMPP traffic from SMPP client A to SMPP client b using a dialing plan based on message destination number prefix , traffic history/details will be saved on SIP Electron server included all traffic info like sender number , message , destination number , etc

SIPElectron supports the WireGuard VPN protocol and software. You can easily create a VPN account on your server using your peer's public key. SIPElectron will automatically assign an IP address and generate a configuration file ready to use on your peer device. Once connected, your devices and the server will be on the same network, allowing you to route traffic from/to server to local network addresses such as 192.168.10.11.

To create a WireGuard VPN account, only one field is required: your peer's public key. Once added to SIPElectron, an IP address will be automatically assigned. This VPN is intended for connecting your gateway or any SIP peers necessary for your business operations. Please note that the VPN does not provide internet access outside our network.

After adding the peer, click on "Config" to view the connection configuration file. You can either use the settings as they are or modify them as needed.

It is not recommended to set AllowedIPs = 0.0.0.0/0, as this is considered insecure.
